FW-CQD16

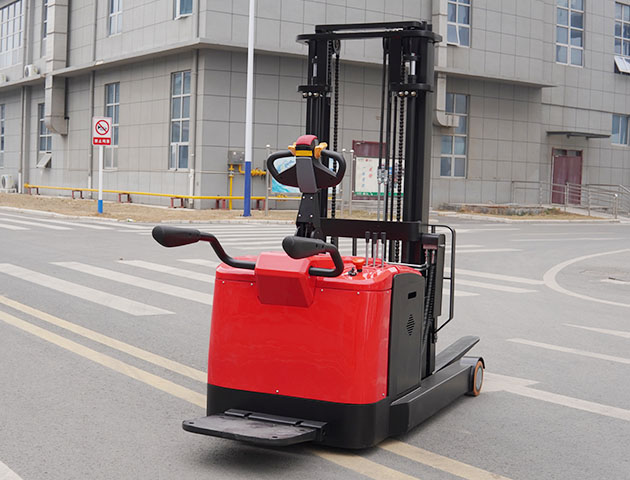

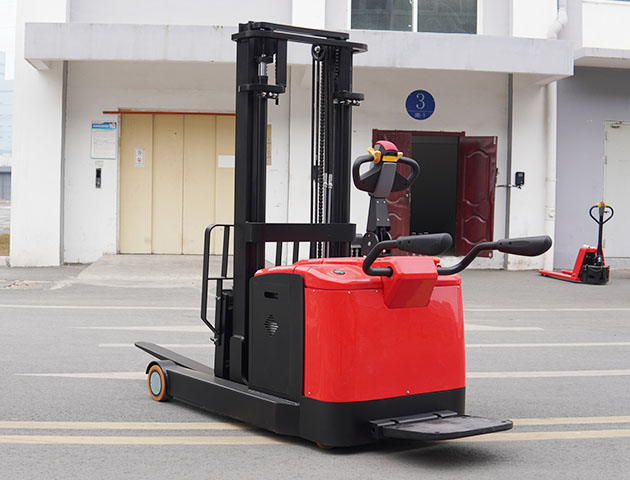

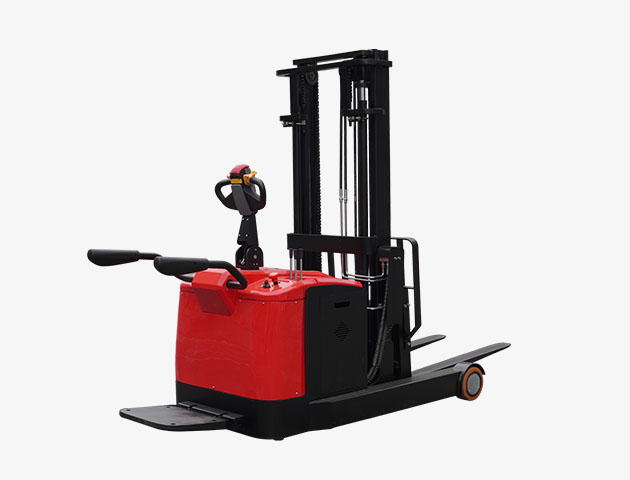

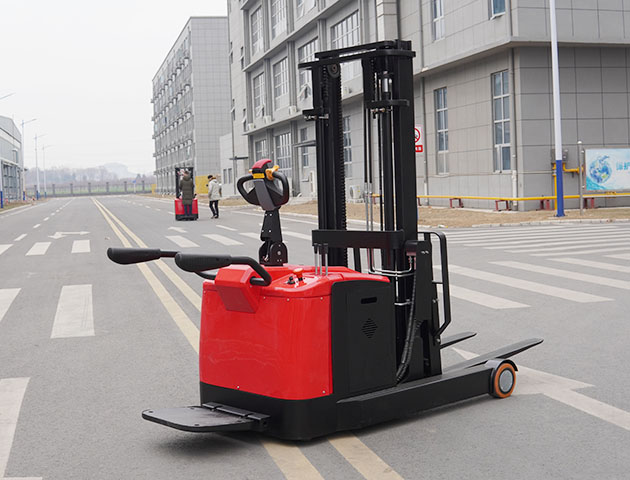

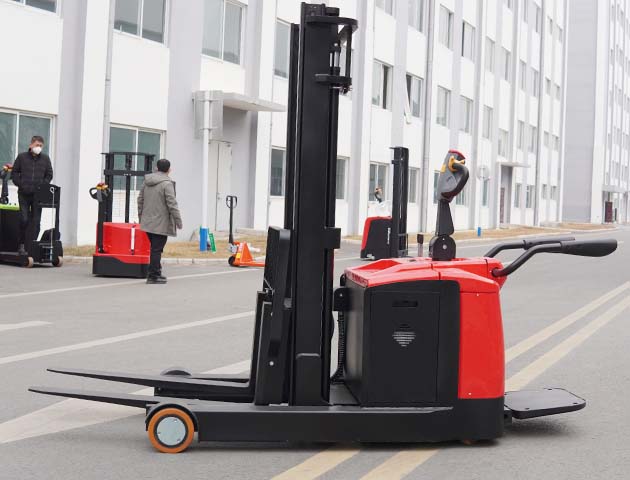

1.6Ton Forward Stacker

Powering Progress, Sustaining the Planet

1600kg

Load capacity

3000mm

Lift Height

Stand-up

Type ofoperation

GET QUOTE

Rated load：1600kg

Wheelbase：1440mm

Fork size：1070×100×40mm

Request a Quote

Configuration

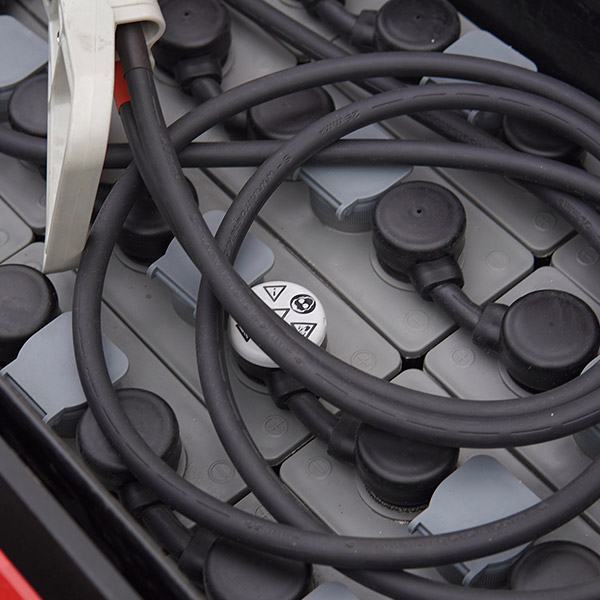

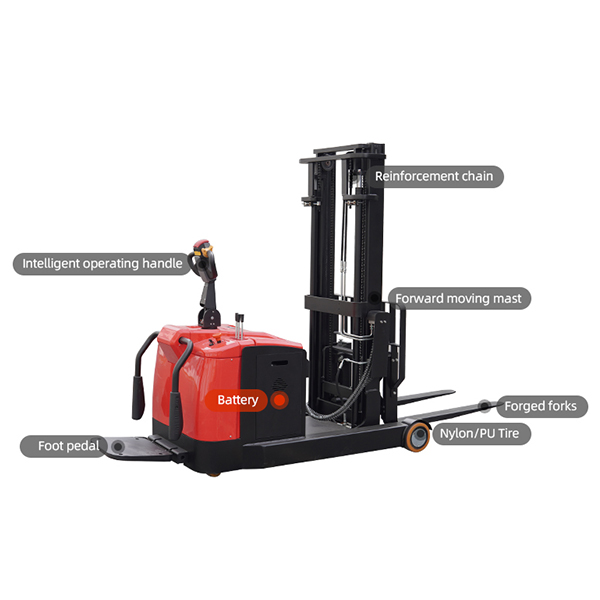

Battery

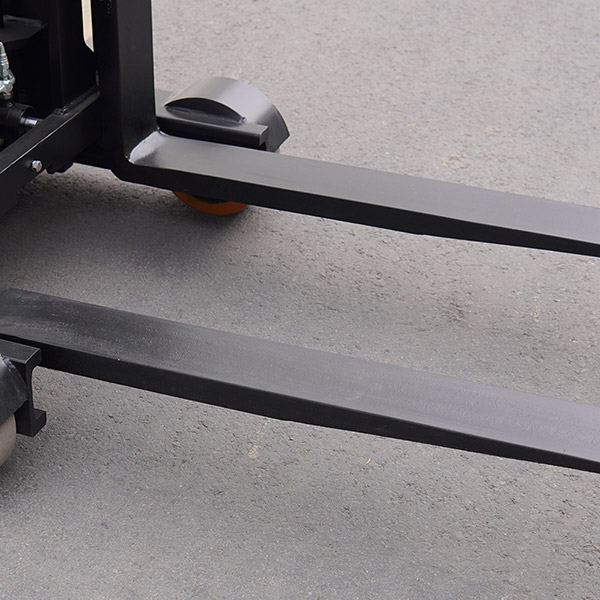

Forged forks

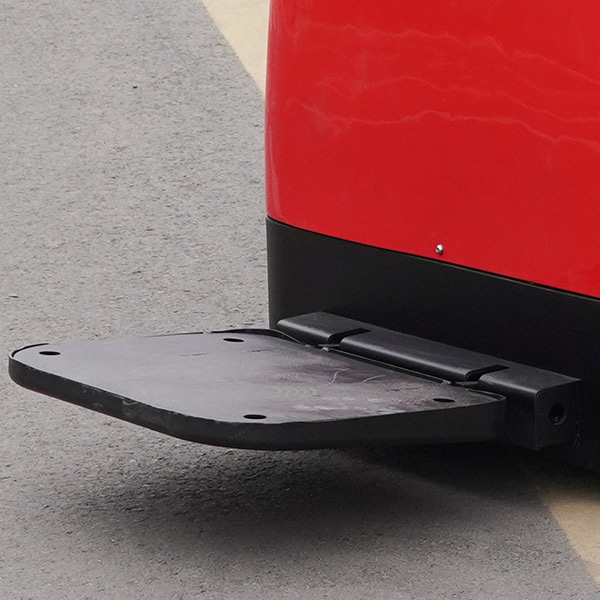

Foot pedal

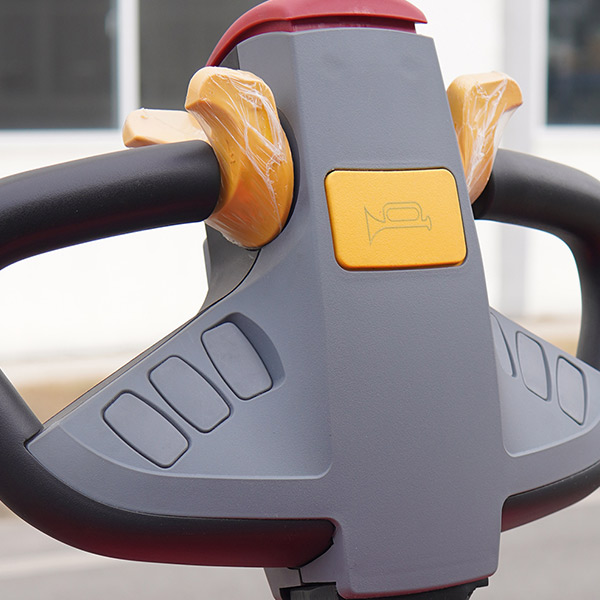

Intelligent operating handle

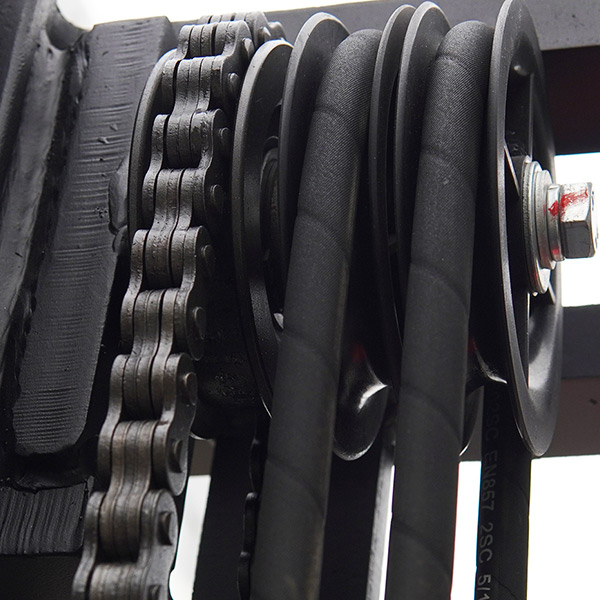

Reinforcement chain

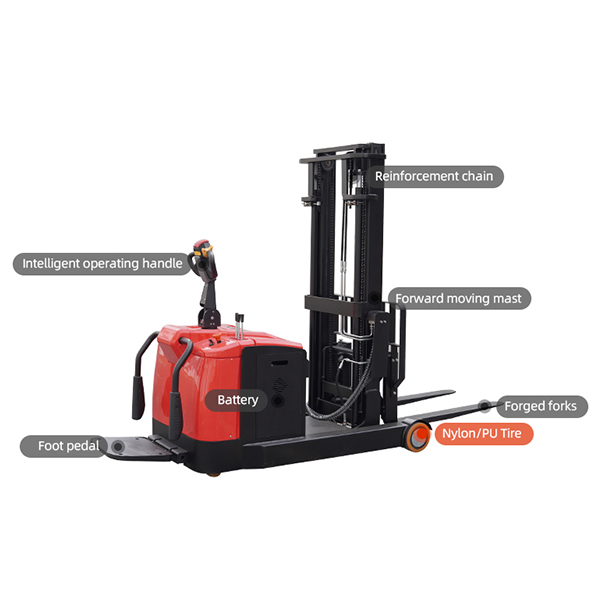

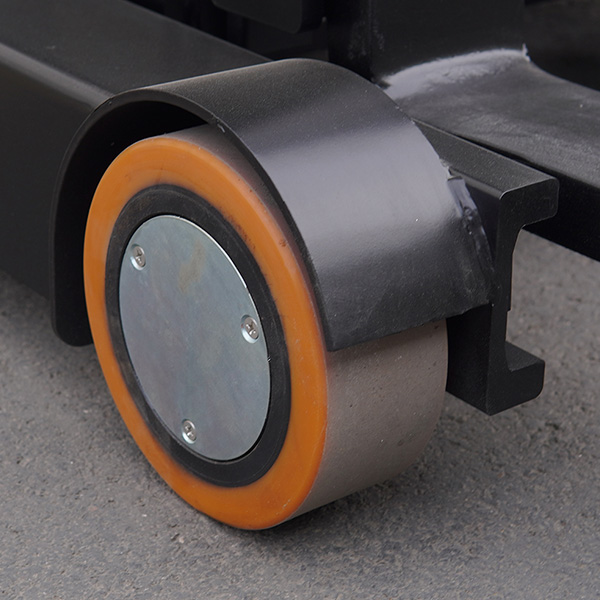

Nylon PU Tire

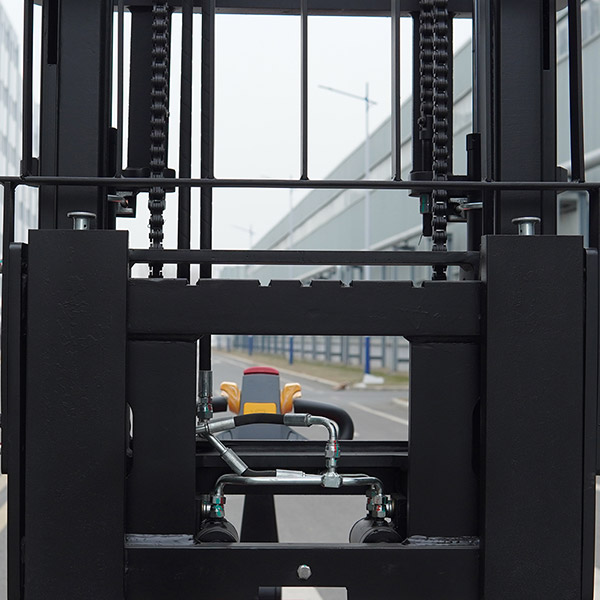

Forward moving mast

Features

The AC brushless drive motor is maintenance-free and cost saving

CURTIS AC control system, accurate control, higher eﬃciency

Equipped with electronic steering, so that steering more eﬀort, even in small space can be comfortable and free steering, reduce fatigue strength, improve eﬃciency

Imported integrated control system,smooth travel control, superior speed regulation performance

Video

Specs & Compare

Load capacity	1600kg
Wheelbase	1440mm
Overall Length	2335/2750mm
Overall Width	880/1030mm
Lift Height	3000mm
Lowered mast height	2040mm
Fork Dimension	1070×100×40mm
Ground Clearance at center of wheelbase (Min)	55mm
Turning Radius	1710/2145mm
Type of operation	Stand-up
